Hunan Sanyi Technolody limited
2 Years
| Ask Lasest Price | |
| Brand Name : | SY |
| Model Number : | X100W2 |
| Certification : | FCC/CE/ROSH |
| Price : | US$22-US$29/PC |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000 pieces per week |
| Delivery Time : | 5-8 working days |
Technical Parameter
| Module | Parameters |
| User interface | 1*10/100/1000M RJ45 2.4GWiFi |
| PON | EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Transmission distance: 20KM |
GPON:upstream 1.25Gbps/downstream 2.5Gbps Transmitting optical power: 0.5~5dBm Optical receive sensitivity:>-7~-28dBm | |
EPON:upstream 1.25Gbps/downstream 1.25Gbps Transmitting optical power: 0~4dBm Optical receiver sensitivity:>-7~-27dBm | |
| Ethernet | 1*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X |
| Size | 105mm(L)X85mm(W)X25mm(H) |
| Environment | Operating temperature:0°C~60°C Operating humidity:10%~85% non-condensing Storage temperature:-40°C~80°C Storage humidity:5%~95% non-condensing |
| Power supply | 12V/0.5A DC powerinterface size:2.1mm/5.5mm |
| Power | 5W |
| Management | WEB/TELNET/TR069/OMCI/OAM |
Product Interfaces
| Indicator | Description | ||
| 1 | POWER | Power status | On: The ONUis power on Off: The ONU is Power off |
| 2 | PON | ONU Register | Blinking: In process of registering to OLT On: Success to register to OLT Off: Fail to register to OLT |
| 3 | LOS | Optical Signals | On: Optical link lower than receiver sensitivity Off: Optical in normal |
| 4 | LAN | LAN Port status | Blinking: Data is being transmitted On:Ethernet connection is normal |

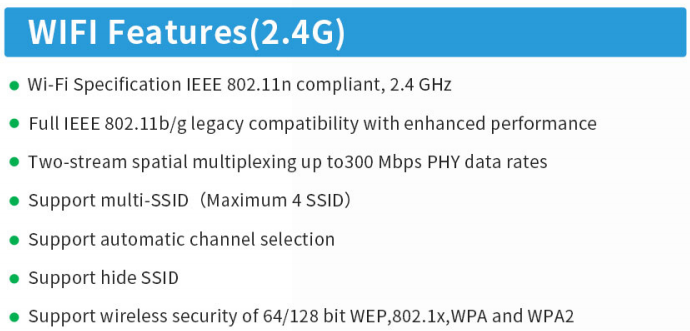

| 5 | 2.4G | WIFI | Blinking: Data is being transmitted On: Wi - Fi function Opens Off: Wi - Fi function closes |
Ordering Information
| Product Model | Descriptions |
| X100W2 | 1*10/100/1000M Ethernetinterface(RJ45) 1 GPON/EPON adaptiveinterface 2.4G WIFI |
Q1. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5
weeks based on order quantity.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q3. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.
Q5. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options,
you can choose the one which is convenient or effective for you!
|
|
