Hunan Sanyi Technolody limited
2 Years
| Ask Lasest Price | |
| Brand Name : | SY |

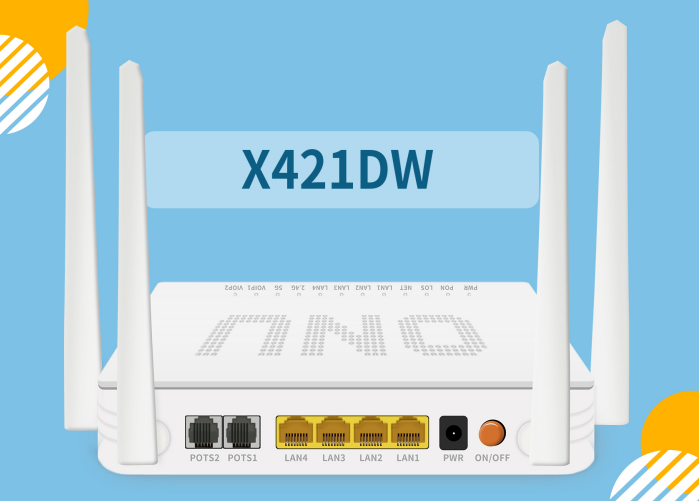

| Model Number : | X421DW |
| Certification : | FCC/CE/ROSH |
| Price : | US$22-US$29/PC |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000 pieces per week |
| Delivery Time : | 5-8 working days |
Technical Parameter
| Module | Parameters |
| User interface | 4 10/100/1000M RJ45 port 2*POTS 1*USB 2.4GWiFi/5GWiFi |
| PON | EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM |
GPON: upstream 1.25Gbps /downstream 2.5Gbps Optical receive sensitivity:-7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm | |
EPON: upstream 1.25Gbps/downstream 1.25Gbps Optical receive sensitivity:-7dBm~-27dBm Continuous light power: 0dBm~4dBm | |
| Ethernet | 4*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
| Size | 160mm(L)*112mm(W)*37mm(H) |
| Environment | Operating temperature:0°C~60°C Operatinghumidity:10%~85% non-condensing Storage temperature:-40°C~80°C Storage humidity:5%~95% non-condensing |
| Power supply | 12V1.5A DC power interface size:2.1mm/5.5mm |
| Power Consumption | <12W |
| POTS Port | 1*RJ11 Max 1km distance Balanced Ring,55V RMS |
| Man | WEB/TELNET/TRO69/OMCI/OAM |
WIFI Features(2.4G/5G)
- Wi-Fi Specification lEEE 802.11n compliant,2.4 GHz/5G
- Full IEEE 802.11b/g/ac legacy compatibility with enhanced performance
- Two-stream spatial multiplexing up to 866 Mbps PHY data rates
- Support multi-SSID (Maximum 4 SSID)
- Support automatic channel selection
- Support hide SSID
- Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
Ordering Information
| Product Model | Descriptions |
| X421DW | 4*10/100/1000M Ethernet interface(RJ45) 1 EPON & GPON adaptive interface |
Voice Service Functions
- With the heartbeat function, support the main producing soft exchange platform;
- Support high / low speed mode transparent transmission, T38 two fax;
- Support high-speed Modem (56Kbps) dial access; support RFC2833
and redundantRFC2833, ringing, MD5 certification, call forwarding,
call waiting, the hotline, alarmclock, abbreviated dialing and
other value-added services;
- Support SIP (compatible with IMS), H.248, MGCP three VolP
protocol, and the softswitch platform the mainstream can be good
intercommunication;
- Support POTS port GR909 line test function;
- Support dynamic PPPOE, DHCP and static IP:
- Support ITU-T G.711, G.723.1, G.729 and other three kinds of
compressionalgorithm;echo cancellation conforming to ITU-T
G.168-2002, an echo cancellerforthe longest 128ms;
- 7* 24 hour call loss is less than or equalto 0.01%;
- Support 2 POTS interface and the three party call, three party
support local mixing;
Product Interfaces and Indicators Definitions
| 1 | POWER | Power status | On: The ONU is power on Off: The ONU is Power off |
| 2 | PON | ONU Register | On: Success to register to OLT Blinking: In process of registering to OLT Off: Fail to register to OLT |
| 3 | LOS | Optical Signals | On: Optical link lower than receiver sensitivity Off: Optical in normal |
| 4 | LAN | LAN Port status | On:Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up |
| 5 | 2.4G | WIFI | On: Wi - Fifunction Opens Blinking: Data is being transmitted Off: Wi - Fi function closes |
| 6 | 5G | WIFI | On: Wi - Fifunction Opens Blinking: Data is being transmitted Off: Wi - Fi function closes |
| 7 | NET | Internet status | On: ONU can access internet Off: ONU can not access internet |
| 8 | VOIP1 | VOIP1 status | On: Voice account Registered |
| 9 | VOIP2 | VOIP2 status | On: Voice account Registered Off: Voice account not Registered |
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q3. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.
Q4. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options,
you can choose the one which is convenient or effective for you!
Q5. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you
design as your requirement.
|
|
