Hunan Sanyi Technolody limited
2 Years
| Ask Lasest Price | |
| Brand Name : | SY |
| Model Number : | X410DW |
| Certification : | FCC/CE/ROSH |
| Price : | US$22-US$29/PC |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 3000 pieces per week |
| Delivery Time : | 5-8 working days |
Technical Parameter
| Module | Parameters |
| User interface | 4 10/100/1000M RJ45 port 2.4GWiFi/5GWiFi |
| PON | EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Security:ONU authentication mechanism Network coverage radius:20KM |
GPON:upstream 1.25Gbps/downstream 2.5Gbps Optical receive sensitivity:-7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm | |
EPON:upstream 1.25Gbps/downstream 125Gbps Optical receive sensitivity:-7dBm~-27dBm Continuous light power: 0dBm~4dBm | |
| Ethernet | 4*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
| Size | 160mm(L)X110mm(W)X25mm(H) |
| Environment | Operating temperature:0°C~60°C Operatinghumidity:10%~85% non-condensing Storage temperature:-40°C~80°C Storage humidity:5%~95% non-condensing |
| Power supply | 12V1.5A DC power interface size:2.1mm/5.5mm |
| Power Consumption | <12W |
| POTS Port | 1*RJ11 Max 1km distance Balanced Ring,55V RMS |
| Man | WEBTELNET/TRO69/OMCI/OAM |
Key Features
- Support device - based rate limitation and bandwidth control
- In compliant with IEEE802.3ah &ITU-T G984.x standard

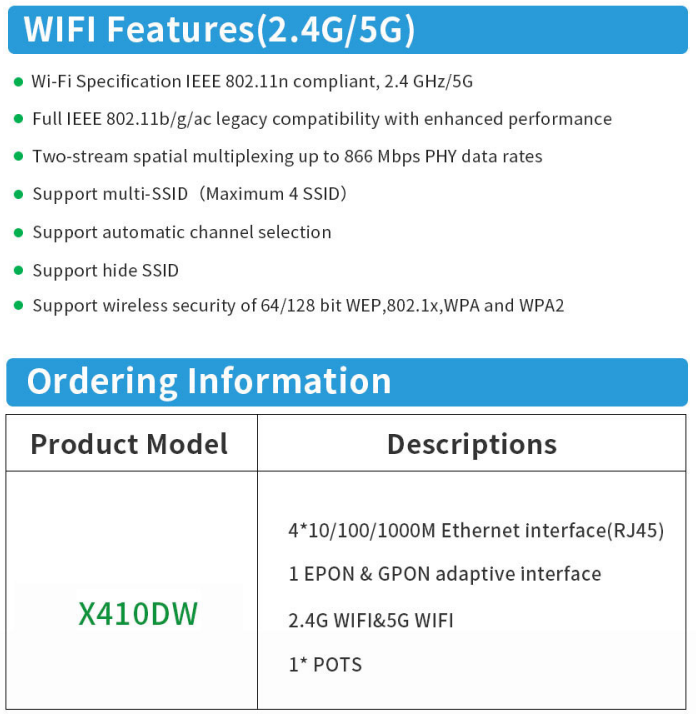

- Wi - Fi series meet 802.11a/b/g/n/ac technicalstandards
- Up to 20KM transmission distance
- Support data encryption, group broadcasting, port Vlan separation
,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto - discovery/Link detection/remote upgrade of
software
- Support port VLAN configuration
- Support power - off alarm function ,easy for link problem
detection
- Support QOS configuration
- Support port binding
- Support port flowarding
- Support ACL to configure data packet filter flexibly
- Specialized design for system breakdown prevention to maintain
stable system
- Support software online upgrading
- Support TR069 for ACS(Auto Config Server)
- Support PPPoE/DHCP Server/1PTV/POTS/NAT
Product Interfaces and Indicators Definitions
| 1 | POWER | Power status | On: The ONU is power on Off: The ONU is Power off |
| 2 | PON | ONU Register | On: Success to register to OLT Blinking: In process of registering to OLT Off: Fail to register to OLT |
| 3 | LOS | Optical Signals | On: Optical link lower than receiver sensitivity Off: Optical in normal |
| 4 | LAN | LAN Port status | On:Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up |
| 5 | 2.4G | WIFI | On: Wi - Fifunction Opens Blinking: Data is being transmitted Off: Wi - Fifunctions closes |
| 6 | 5G | WIFI | On: Wi - Fifunction Opens Blinking: Data is being transmitted Off: Wi - Fi function closes |
| 7 | WPS | WPS | On: Terminalhas connected Blinking:Terminalis connecting Off: Terminal not connected |
| 8 | NET | Internet status | On: ONU can access internet Off: ONU can not access internet |
| 9 | POTS | POTS status | On: Voice account Registered Off: Voice account not Registered |
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5
weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF
Express or your designated forwarder. It usually takes 3-7 days to
arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options,
you can choose the one which is convenient or effective for you!
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you
design as your requirement.
|
|
