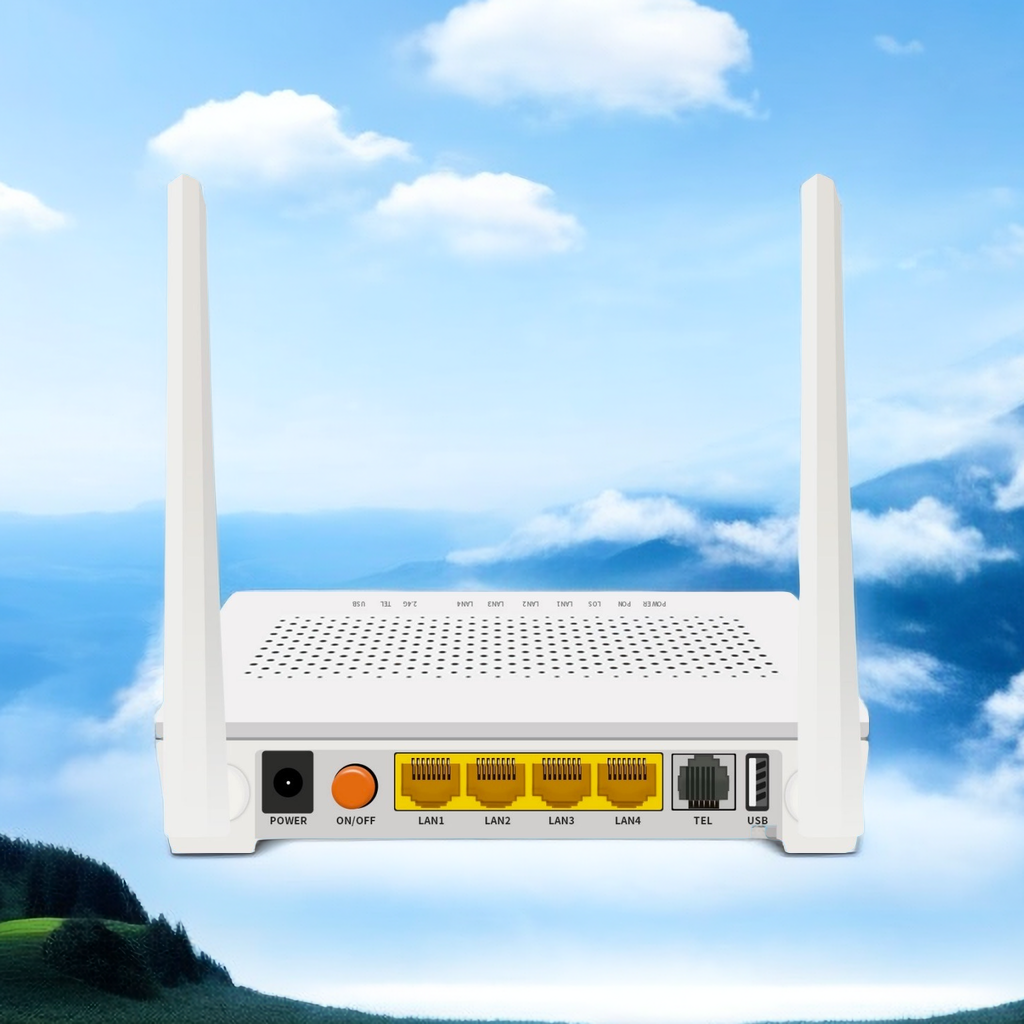

Compact 4G LTE WiFi Router With 1*10/100/1000M 3*10/100M Ethernet And 1*RJ11 POTS Port
Technical Parameter
| Module | Parameters |
| User interface | 1*10/100/1000MRJ45 3*10/100M RJ45 1*POTS 1*USB 2.4G WiFi |
| PON | EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Network coverageradius:20KM |
GPON:upstream 1.25Gbps/downstream 2.5Gbps Transmission optical power:0.5dBm~5dBm Opticalreceive sensitivity:-7dBm~-28dBm | |
EPON:upstream 1.25Gbps/downstream 1.25Gbps Transmission optical power: dBm~0.4dBm Optical receive sensitivity:-7dBm~-27dBm | |
| Ethernet | 1*10/100/1000M+3*10/100M auto-negotiation Full/half duplex mode |
| Size | 140mm(L)x90mm(W)X30mm(H) |
| Environment | Operating temperature:0°C~60°C Operatinghumidity:10%~85% non-condensing Storage temperature:-40°C~80°C Storage humidity:5%~95% non-condensing |
| Power supply | 12V/1A DC power interface size:21mm/5.5mm |
| Power Consumption | <8.5W |
| POTS Port | 1*RJ11with3REN Max 1km distance Balanced Ring,55V RMS |
| Man | WEB/TELNET/TR069/OMCI/OAM |
Voice Service Functions
- With the heartbeat function, support the main producing soft exchange platform;
- Support high / low speed mode transparent transmission, T38 two
fax;
- Support high-speed Modem (56Kbps) dial access; support RFC2833
and redundantRFC2833, ringing, MD5 certification, call forwarding,
call waiting, the hotline, alarmclock, abbreviated dialing and
other value-added services;
- Support SIP (compatible with IMS), H.248, MGCP three VolP
protocol, and the softswitch platform the mainstream can be good
intercommunication;
- Support 1 POTS interface and the three party call, three party support local mixing;
- Support POTS port GR909 line test function;
- Support dynamic PPPOE, DHCP and static IP;
- Support ITU-T G.711,G.723.1, GTo canceller for the longest 128ms;
- 7* 24 hour call loss is less than or equal to 0.01%;
WIFI Features(2.4G)
- Wi-Fi Specification lEEE 802.11n compliant,2.4 GHz
- Full IEEE 802.11b/g legacy compatibility with enhanced performance
- Two-stream spatial multiplexing up to 300 Mbps PHY data rates
- Support multi-SSID (Maximum 4 SSID)
- Support automatic channel selection
- Support hide SSID
- Support wireless security of 64/128 bit WEP802.1x,WPA and WPA2
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5
weeks based on order quantity.
Q3. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.
Q5. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options,
you can choose the one which is convenient or effective for you!
|
|
