Hunan Sanyi Technolody limited
2 Years
| Ask Lasest Price | |
| Brand Name : | SY |
| Model Number : | XPON-110W |
| Certification : | FCC/CE/ROSH |
| Price : | US$26-US$29/PC |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 pieces per week |
| Delivery Time : | 5-8 working days |
PEPON&GPON mode adaptive
Interface Type:SC-APC/SC-UPC
Network coverage radius: 20KM
PON 4g 5g Routers 1/10/100/1000M GE WAN HUAWEI Wifi Routers 4g Lte Router RJ45 Port 2.4G Wifi 5.8G Wifi
Key Features
Support device-based rate limitation and bandwidth control
In compliant with IEEE802.3ah & ITU-T G.984 standard
Wi-Fi series meet 802.11 b/g/n technical standards
Up to 20KM transmission distance
data encryption, group broadcasting, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto discovery/Link detection/remote upgrade of software
Support VLAN tag/untag configuration
Support ACL to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
Support TR069 for ACS(Auto Config Server)
Support PPPoE/DHCP Server/NAT
Voice Service Functions
• With the heartbeat function, support the main producing soft exchange platform
• Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression
• Support high / low speed mode transparent transmission, T38 two fax
• Support POTS interface and the three party call, three party support local mixing
Support POTS port GR909 line test function
• Support dynamic PPPOE, DHCP and static IP
• 7 * 24 hour call loss is less than or equal to 0.01%
• Support power - off alarm function ,easy for link problem detection
• Support port binding
Support SIP (compatible with IMS), H.248, MGCP three VoIP protocol, and the soft
switch platform the mainstream can be good intercommunication
• Support high-speed Modem (56Kbps) dial access; support RFC2833 and redundant
RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm
clock, abbreviated dialing and other value-added services
WIFI Features(2.4G)
• Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz
• Full IEEE 802.11b/g legacy compatibility with enhanced performance
• Two-stream spatial multiplexing up to 300Mbps PHY data rates
• Support multi-SSID (Maximum 4 SSID)
• Support automatic channel selection.
• Support hide SSID
• Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2
PON:
EPON&GPON mode adaptive
Interface Type:SC-APC/SC-UPC
Network coverage radius: 20KM
GPON: upstream 1.25Gbps/downstream 2.5Gbps
Optical receive sensitivity:-7dBm~-28dBm
Continuous light power: 0.5dBm~+5dBm
EPON: upstream 1.25Gbps/downstream 1.25Gbps
Optical receive sensitivity:-7dBm~-27dBm
Continuous light power: 0dBm-4dBm

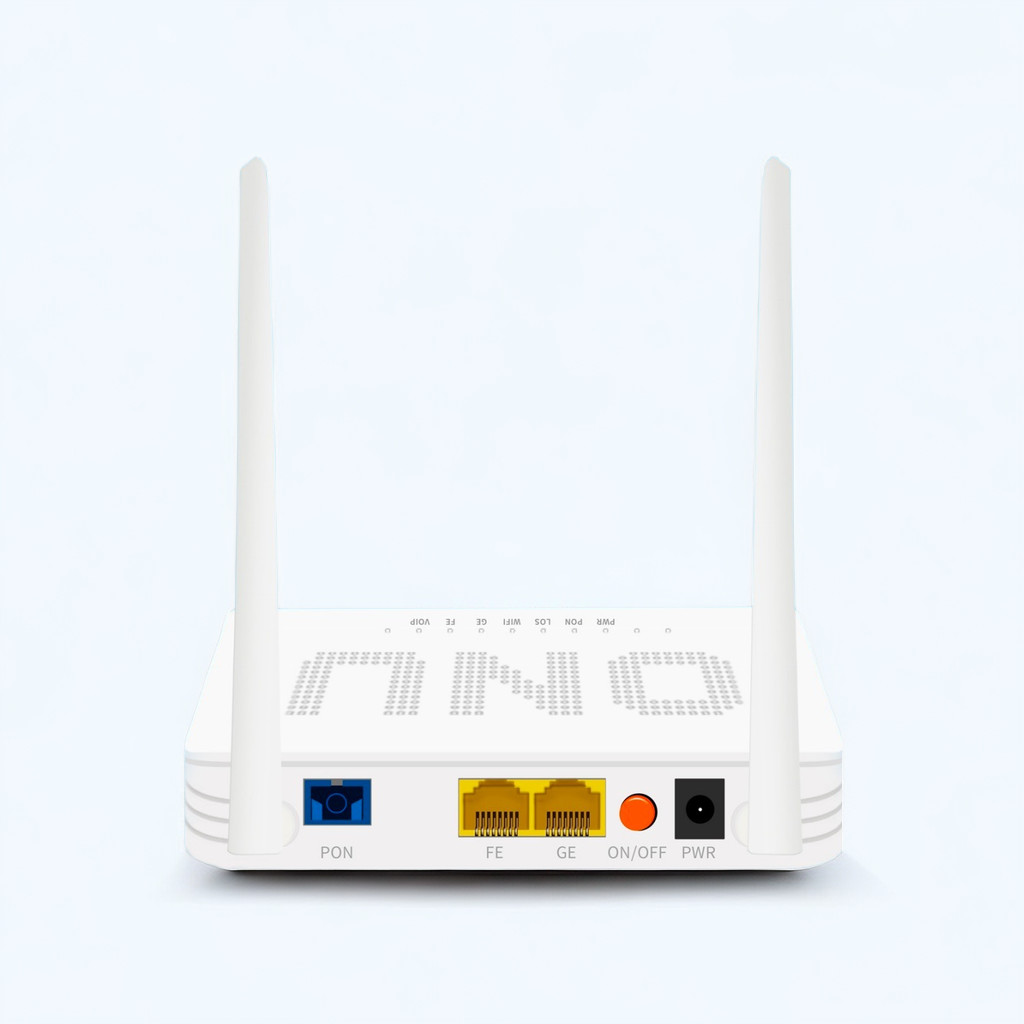

Product Interfaces and Indicators Definitions
POWER:
On: The ONU is power on
Of: The ONU is Power off
PON:
On: Success to register to OLT
Blinking: In process of registering to OLT
Of: Fail to register to OLT
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5
weeks based on order quantity.
Q3. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.
Q5. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options,
you can choose the one which is convenient or effective for you!
|
|
