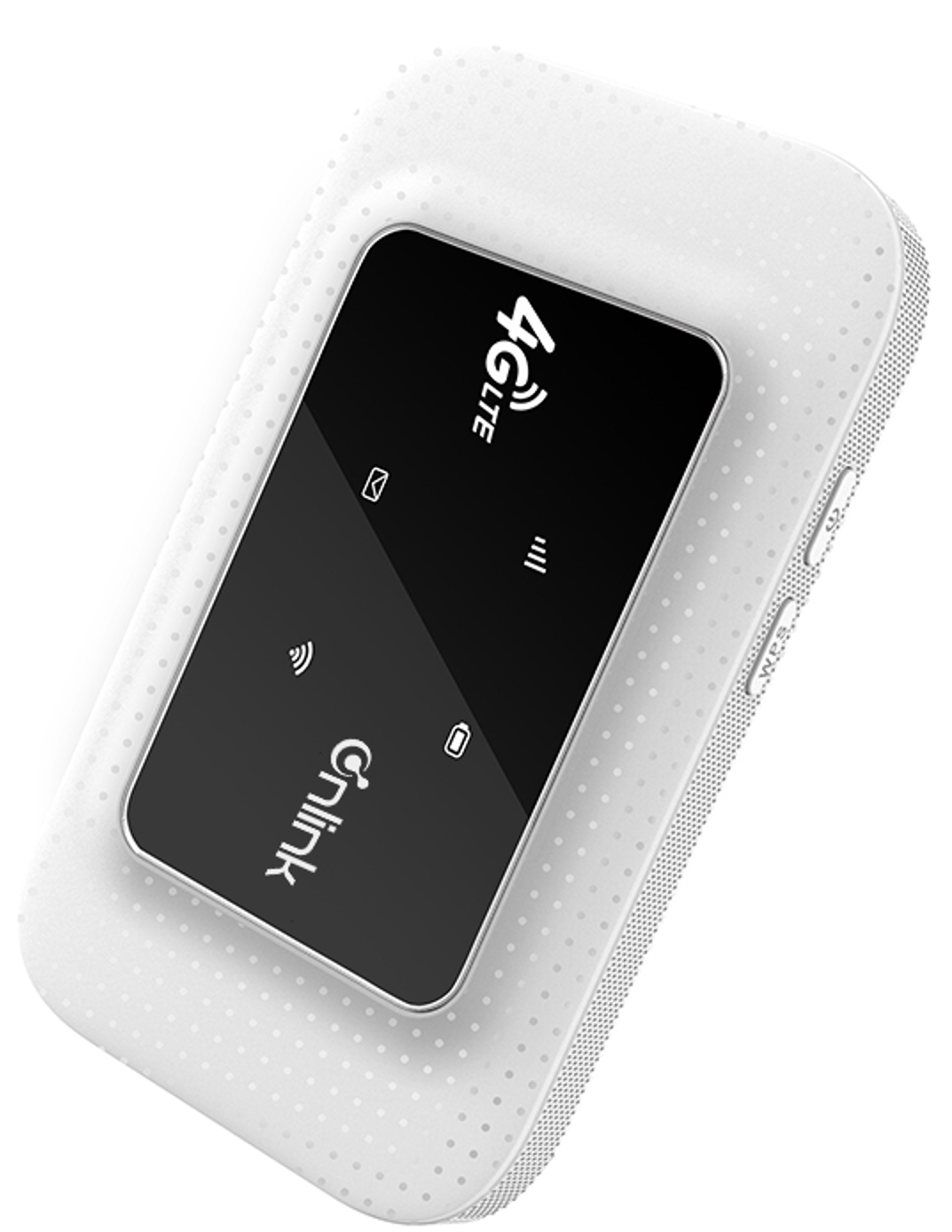

Portable 4G MIFI Router - High Speed LTE Network, Battery 2500mAh

4G LTE MIFI D523 Specification
Item	Sub Item		SPEC
ID Name	ID Drawing			LCD/LED	Size	Weight	Painting&silk print	CPU
D523				LCD/LED Optional	60*112*17mm	around 82g	Standard	ASR1803S
Product	PCBA Name		BAND
			TDD-LTE	FDD-LTE	TD-SCDMA	UMTS	EDGE/GPRS	Battery
MiFi	F231E		/	band B1(2100Mhz)/B3(1800Mhz)/B7(2600Mhz)/B8 (900Mhz)/B20(800Mhz)	/	B1(2100Mhz)	/	2500mAh
LTE
Power Level	TDD-LTE		Power Class 3(23 +/-3dBm)					Supported
	FDD LTE		Power Class 3(23 +/-3dBm)
	UMTS		Power Class 3(23 +/-2dBm)
Sensitivity	TDD LTE		-94 dBm(20MHZ)					Supported
	FDD LTE		-93 dBm(20MHZ)
	UMTS		-106 dBm
Data Rate	TDD-LTE		3GPP R9 ,Category 4, DL 150Mbps UL 50Mbps					Supported
	FDD-LTE		3GPP R9 ,Category 4, DL 150Mbps UL 50Mbps					Supported
	UMTS		3GPP R7 DL 21.6Mbps UL 5.76Mbps					Supported
LTE MIMO			2x2					Supported
WIFI
Band	WIFI IEEE 802.11b/g/n		ISM 2.400~2.484GHz					Supported
Power Level	WIFI IEEE 802.11b		>10dBm					Supported
	WIFI IEEE 802.11g		>10dBm
	WIFI IEEE 802.11n		>10dBm
Sensitivity	WIFI IEEE 802.11b(11M)		-76dBm@ 8%BER					Supported
	WIFI IEEE 802.11g(54M)		-65dBm@ 10%BER
	WIFI IEEE 802.11n(72.2M)		-64dBm@ 10%BER
Data Rate	WIFI IEEE 802.11b		11/5.5 Mbps					Supported
	WIFI IEEE 802.11g		54/48/36/24/18/12/9/6 Mbps					Supported
	WIFI IEEE 802.11n		72.2/65/58.5/52/39/26/19.5/13/6.5 Mbps；					Supported
WIFI MIMO			1x1					Supported
System
3G/4G setup	Network Selection		Manual, Auto					Supported
	Interoperability		TDD-LTE , TDD-LTE & UMTS, FDD-LTE , FDD-LTE &UMTS					Supported
	SMS		SMS over SGs Func at LTE					NA
			SMS's receiving and reading					Supported
	APN setup		APN setup and revise					Supported
	PIN Func		PIN:Save, revise, lock,unlock					Supported
	DM		DM(Now support CMCC DM)					NA
	Modem Func		Conn to PC by USB					Supported
	Automatically connect reconstructed		Can automatically reconnect to network after off-network in data using					Supported
WIFI setup	Protocol		Max users 10					Supported
			DHCP client / server, you can set whether to activate the DHCP service assigns IP addresses starting and ending addresses, set the gateway address; Support client list: Displays all the DHCP server to obtain IP address of the host, including MAC address, IP address obtained					Supported
			Support terminal IP address, SSID, communication channel, security type, the administrator account and password factory setting					administrator account NA
			Support SSID and channel settings: Set SSID, communication channel (frequency band WiFi settings, select the range of WiFi support of the band all the available channels), WIFI function on/off, and the SSID broadcast on/off					Supported
			Provides WEP, WPA-PSK, WPA2-PSK, WAPI encryption methods, etc.					WEP&WAPI NA
			Support MAC and IP filtering					Supported
Other setup	Driver setup		With the PC operating system automatically recognizes, supports drivers installed from CD-ROM					Supported
	Web Server		WEB UI					Supported
	Administrator password configuration		Terminal preset default administrator password, supports password changes					NA
	SW update		Support local upgrade the firmware of the terminal					Supported
	Time setup		Set user location's time					NA
	Recovery		Support the terminal restore all settings to the factory default state					Supported
	Reboot		Reboot by SW					Supported
	Operator lock		Software locking(can customization hardware locking)					customization hardware locking NA
	System Log		Display system during operation log information generated. Easy for users to understand the equipment through query log system events that have occurred on. Allows the user to clear the log operation					NA
Power features	working Voltage		5V					Supported
	Voltage fluctuations		5V±0.3V					Supported
	working Current		200-500mA					Supported
Environmental Characteristics	Operating Temperature		0℃～+40℃					Supported
	Extreme working temperature		-10℃～+60℃					Supported
	Storage Temperature		-20℃～+70℃					Supported
	Operating Humidity		5%～65%RH , non-condensing					Supported
	Storing humidity		5%～95%RH , non-condensing					Supported
Structure	I/O		Standard USB for Mi-FI;					Supported
	LTE SIM		Single					Supported
	T-Flash Card		supported,max 32GB					NA
Port	LTE SIM		3GPP 31.101 and 31.102 standard					Supported
	Key		The power button The WPS switch button Restore the factory button (pinhole)					NA
	LCD/LED		LED					Supported
Reception range			15m					Supported
PC OS	Win7/WinXP		Supported					Supported
	MAC OS		Supported					Supported
	Windows8		Supported					Supported
	Vista		Supported					Supported
	LINUX		Supported					Supported
