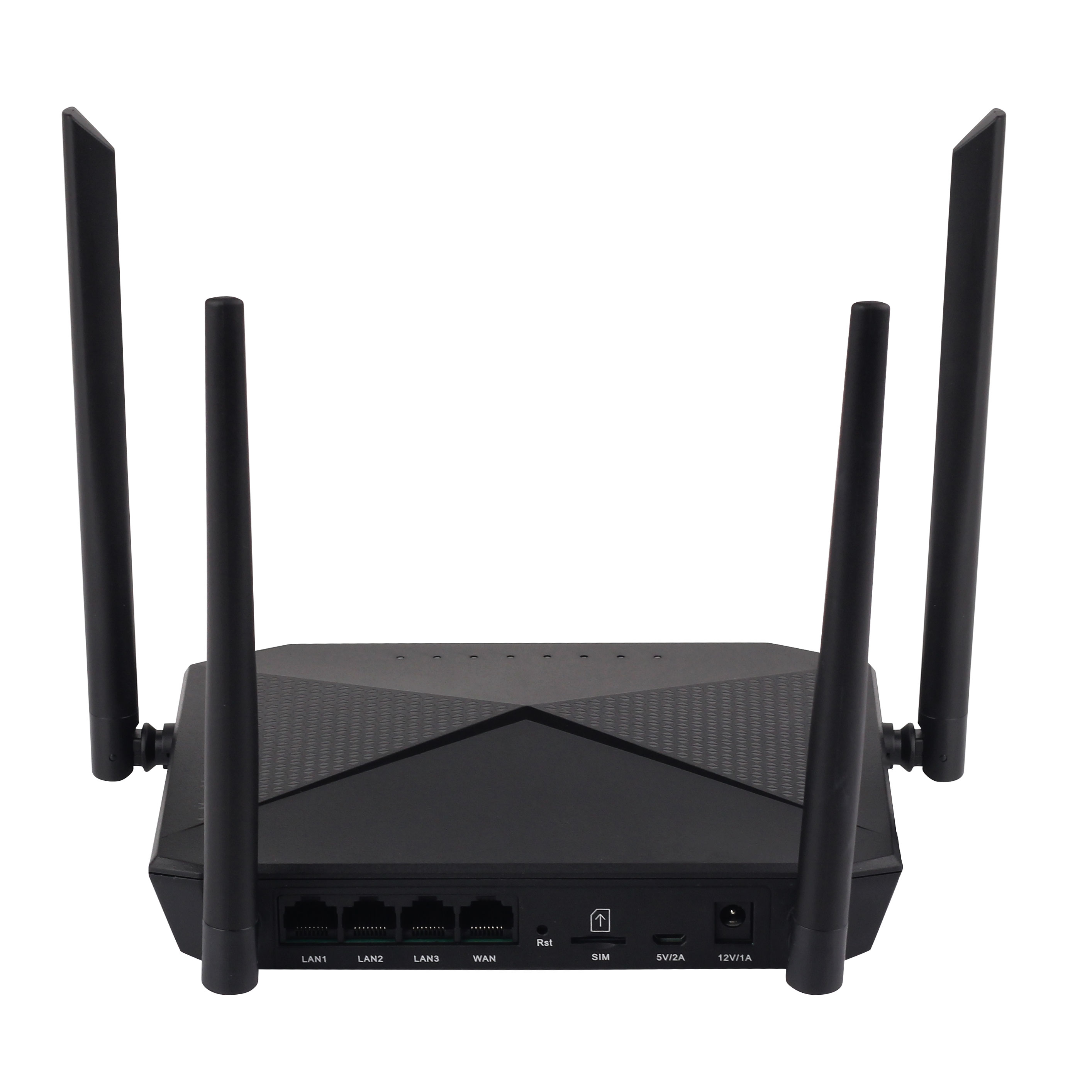

SF803 4G LTE WiFi Router, Compatible with 2G/3G/4G & Support 4G to Wired & 4G to WiFi
SF803 is a high-performance wireless router developed for 4G network access, the device has a high-performance processor, which can deal with various network protocols and network data at a high speed, works at 4G to wired, 4G to WiFi and other operating modes, supports hardware watchdog and internet hot-backup and other practical features, people can get high-speed stable uninterrupted internet through our product.
CPU/Memory
CPU: MT7628NN
RAM: 64M
ROM: 8M
| 4G | |
| Standard | WCDMA R7, LTE R9 |
| Compatibility | 4G / 3G / 2G |
| 4G rate | 150Mbps / 50Mbps |
| Frequency(optional) | CN - TDD LTE: B34/B38/B39/B40/B41, FDD LTE: B1/B3/B5/B8, WCDMA:
B1/B5/B8 AU - TDD LTE: B38/B40/B41, FDD LTE: B1/B3/B5/B7/B8/B20/B28, WCDMA: B1/B5/B8 NA - TDD: LTE B38/B40/B41, FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B12*/B17*/B66*, WCDMA: B1/B2/B4/B5/B8 |
| WLAN | |
| Standard | IEEE 802.11 b/g/n |
| Frequency | 2.4 Ghz |
| Radio mode | MiMo 2x2 |
| Transmit Power | 17±2dBm |
| Data rate | 300Mbps |
| Sensitivity | 11n : -70dBm@10% PER, 11g : -72dBm@10% PER, 11b: -88dBm@8% PER |
| Antenna | |
| 4G | External 5dBi 4G antenna x2 |
| WiFi | External 5dBi 2.4 Ghz antenna x2 |
| Interfaces | |
| Wire | 1 x 10/100M WAN/LAN, 1 x 10/100M LAN |
| Card slot | 1 x SIM Card Socket |
| LED | 1 x Power, 3 x LAN, 1 x WAN, 1 x Wireless, 1 x 4G, 1 x Internet |
| Other | Reset Button x 1 |
| Software | |
| Operating mode | Bridge, Router, Wireless station, Wireless repeater, 3G/4G mode |
| Internet method | 5G/4G, WAN(Static IP, DHCP client, PPPoE client) |
| Services | DHCP Server, DHCP Relay, DDNS |
| Network techniques | Port forwarding, DMZ, UPnP, VPN(L2TP/PPTP, Static routing |
| Security defense | IP filtering, MAC filtering, URLfiltering, Port-scanning defense, SYN flooding attack |
| QoS | IP based |
| Other | Quick installation guide |
Environmental | |
Operating temperature | -20°C ~ +55°C |
Humidity | 0 ~ 90 % (non-condensing) |
Package contains | |
Router | 1 |
12V 1A DC Adapter | 1 |
Other | Other |
Do you provide PCBA board order only?
A. Of course, as a OEM/ODM manufacturer, we can provide PCBA in a
short time with good quality.
Can you desin products as per customer's requirements?
A. Yes, of course. We have our own R&D department, we have
ability to design and produce at same time.
How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is
also optional.
How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a
deposit for formal order. Fourthly We arrange the production.
Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you
design as your requirement.
|
|
