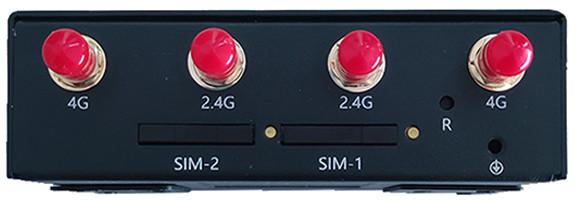

    DC 12V / 1A Cat 4 4G Industrial LTE Router 150Mbps / 50Mbps Rate Frequency

    Ask Lasest Price
    Brand Name : SY
    Model Number : SF800D
    Certification : FCC/CE/ROSH
    Price : US$98-US$105/PC
    Payment Terms : L/C, T/T
    Supply Ability : 3000 pieces per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    DC 12V / 1A Cat 4 4G Industrial LTE Router 150Mbps / 50Mbps Rate Frequency

    SF800D 4G Router Supporting 150/50Mbps Rate & Frequency for Power/Finance/Public Security/Heat Industry


    SF800D is a high-performance wireless industrial router developed for 4G network access, dual SIM card socket design, supports guide rail installation, IM. The product supports transparent data transmission, and is widely used in various scenarios such as business data transmission, image transmission, equipment status monitoring and WiFi coverage. The device adopts a high-performance 32-bit processor, which can deal with various network protocols and massive network data at a high speed.
    The product supports hot backup of internet, hardware watchdog and other practical features and wide voltage range power supply, people can get high-speed stable uninterrupted internet through our product. The product can work with a variety of industrial 4G modules to support different frequency bands, is applicable to power, finance,public security, heat, industrial control, meteorological, water conservancy, transportation, municipal and other industries.



    CPU/Memory
    CPUMT7628NN
    RAM128M
    ROM4M
    4G
    StandardWCDMA R7, LTE R9
    Compatibility
    4G / 3G / 2G
    4G rate
    150Mbps / 50Mbps
    Frequency(optional)
    CN - TDD LTE: B34/B38/B39/B40/B41, FDD LTE: B1/B3/B5/B8, WCDMA: B1/B5/B8
    AU - TDD LTE: B38/B40/B41, FDD LTE: B1/B3/B5/B7/B8/B20/B28, WCDMA: B1/B5/B8
    NA - TDD: LTE B38/B40/B41, FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B12*/B17*/B66*,
    WCDMA: B1/B2/B4/B5/B8
    WLAN
    StandardIEEE 802.11 b/g/n
    Frequency2.4 Ghz
    Radio modeMiMo 2x2
    Transmit Power17±2dBm
    Data rate300Mbps
    Sensitivity11n : -70dBm@10% PER, 11g : -72dBm@10% PER, 11b: -88dBm@8% PER
    Antenna
    4GExternal 5dBi 4G antenna x2
    WiFiExternal 5dBi 2.4 Ghz antenna x2
    Interfaces
    Wire1 x 10/100M WAN/LAN, 1 x 10/100M LAN
    Card slot2 x SIM Card Socket
    LED1 x LAN, 1 x WAN/LAN, 1 x WLAN, 1 x LTE, 1 x System
    OtherReset Button x 1, 8 pin 3.5/3.81mm 8mm connector (PWR pin x 2, RS485 pin x 3, GPIO pin x 3)
    Software
    Operating mode
    Bridge, Router, Wireless station, Wireless repeater, 3G/4G mode
    Internet method
    5G/4G, WAN(Static IP, DHCP client, PPPoE client)
    Services
    DHCP Server, DHCP Relay, DDNS
    Network techniques
    Port forwarding, DMZ, UPnP, VPN(L2TP/PPTP, Static routing
    Security defense
    IP filtering, MAC filtering, URLfiltering, Port-scanning defense, SYN flooding attack
    QoS
    IP/MAC based
    Other
    Quick installation guide
    Physical
    Dimension: 99 x 88 x 30 mm
    Weight: 427.5 g
    Mounting: Desktop/Wall mount/Guide rail installation
    Power
    Power supply: 12V/1A DC
    Power source: 100 – 240V AC, 50/60Hz
    Power consumption (max): 12 W

    Environmental
    Operating temperature: -30°C ~ +65°C
    Humidity: 0 ~ 90 % (non-condensing)

    Package contains
    Router: 1
    12V 1A DC: 1
    Antenna: 2 x 4G antenna, 2 x 2.4G antenna
    Product Application
    Company Profile
    Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh
    Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE.
    Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in
    Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine.
    Sanyi warmly welcome everybody joining in and build win-win cooperation.
