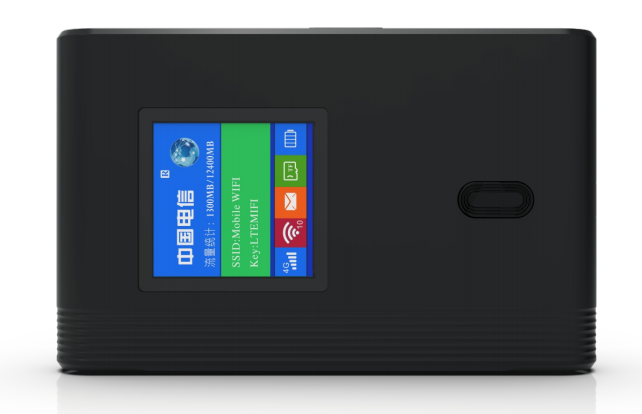

Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps

4G LTE WiFi Router GW103-A, Multi-Mode Multi-Band Access, Uplink/Downlink 50/150 Mbps

GW103 series is cost competitive multi-mode indoor MIFI, compliant with 3GPP Release 9, LTE 4G, 3G This multi-mode multi -band MIFI ensures operator to enjoy the cost-benefits over service and share of network.

• Multi-mode multi-band access of LTE 4G FDD, TDD bands

• Adaptive and Reliable Radio Access Modes: 4G, 3G

Multi-band LTE and UMTS

GW103 series can support multiple bands crossing 4G, 3G These spectrums are the most widely used and are prime bands for 4G, 3G deployments globally.

Under appropriate base station supports, GW103 series' speed of LTE FDD is theoretically 50 Mbps at uplink, and downlink speed is up to 150 Mbps. It results in a fast and robust uplink and downlink performance.

Supporting band:

Versions	FDD-LTE Band	TDD-LTE Band	WCDMA Band
GW103-AS	B1,B3,B5	B40	B1,B5
GW103-E	B1,B3,B7,B8,B20	B40	B1,B8
GW103-A	B2,B4,B5,B7	NA	B2,B4,B5
GW103-J	B1,B3,B8,B18,B19	B26	B1,B8
GW103-M	B1,B3,B8	B38,B40,B41	B1,B8

Hardware Specifications

Feature	Description	Comments
CPU	ZX297520V3
Standard	3GPP Release 9
UE Category	CAT.4
Wi-Fi	2.4 GHz	802.11 b/g/n compliant
Display mode	1.45 inch LCD	Optional screen
Battery capacity	2000mAh
Usage time	6-8 hours battery life, 72 hours standby
LED Indicators	Power Wi-Fi/ Internet /Signa Strength
SIM	3FF USIM	support 1.8V / 3.0V
Power Button	Tact switch x1
Reset Button	Tact switch x1
Power Supply	Input: Universal range 100~240V AC; Output: 5V/ 1A DC	Micro USB length 30cm
		Optional. Extra cost required

ID Specifications

Dimension	96.060.414.5mm
Weight	99g

RF Specifications

Feature	Capability				Comments
Feature	Min	Typ	Max	Unit	Comments
LTE Max Transmit Power		22		dBm	Compliant with 3GPP with margin
LTE Receiver Sensitivity (FDD)	-93			dBm	Compliant with 3GPP with margin
LTE Antenna Support Frequency	703		2690	MHZ
Wi-Fi Channel @ 2.4GHz	Ch 1~13
2.4GHz Wi-Fi Channel BW		20/40		MHZ
Wi-Fi Power level		14		dBm	11b
		13		dBm	11g
		11		dBm	11n
Wi-Fi Sensitivity 11n	≤- 69			dBm

Environmental Specifications

Feature	Capability				Comments
Feature	Min	Typ	Max	Unit	Comments
Operating temperature	0		40	℃
Storage temperature	-20		45	℃
Operating humidity	10		85	%
Storage humidity	10		85	%

EMC Specifications

Feature	Standard	Capability	Comments
Immunity to ESD	EN 61000 -4-2	Compliant	Air +/8 KV; Contact +/-4KV
Immunity to burst	EN 61000 -4-4	Compliant	L/N/L-N+/-1KV
Immunity to surge	EN 61000 -4-5	Compliant	L-N+/-1KV
Immunity to Conducted RF disturbances	EN 61000 -4-6	Compliant	0.15-80 MHz
Immunity to Voltage Dips and short interruption	EN 61000 -4-11	Compliant
Harmonic current emissions	EN 61000 -3-2	Compliant
Voltage fluctuations and flicker	EN 61000 -3-3	Compliant
Conducted emission test, class-B	EN 55022	Compliant	0.15-30 MHz

Package Content

Item	Description	Remarks
GW103 MIFI	X 1
USB cable	X 1	5V 1A
Manual book	X 1

Company Profile

Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing
network devices, specially for processing OEM/ODM. Products include
openWRT WiFi router, 4G/5G router, Mesh Router, WiFi 6 Router,
Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE
and LTE CPE.Sayi is also a Wi-Fi coverage service provider, provides the
solution for hotel, school, hospital, enterprise, airport and
vehicle field. We have built a long term cooperation with Mediatek,
Broadcom and Qualcomm, capably offering good quality products and
fast after-sale service to our clients. Our main customers are
China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in
USA and Smart in Philippine. Sanyi warmly welcome everybody joining
in and build win-win cooperation.

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.

Q2. Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability
to design and produce at same time.
Q3. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Then we arrange the production.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF
Express or your designated forwarder. It usually takes 3-7 days to
arrive. Airline and sea shipping also optional.

Q5. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options,
you can choose the one which is convenient or effective for you!

Q6. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you
design as your requirement.
